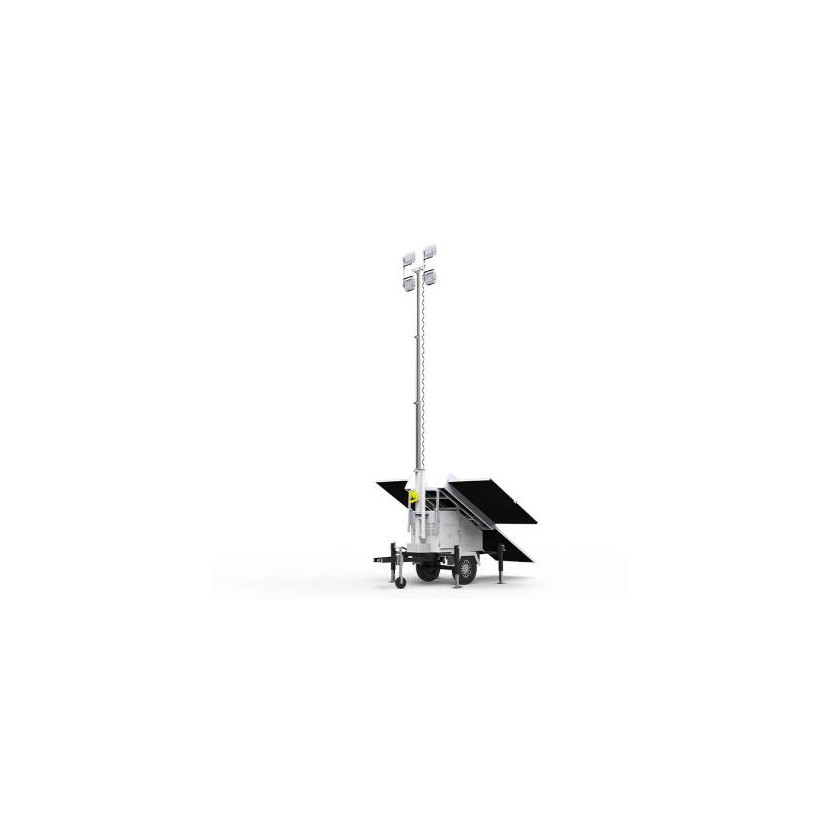

The lighthouse mainly consists of the following parts:
Solar Panel: This is the core part of the lighthouse, responsible for converting the sun's radiant energy into electrical energy. The solar panel uses monocrystalline 4*460W.
Batteries: Used to store the electricity generated by solar panels, ensuring continuous power even when there is no sunlight. The battery type adopts 6*200AH gel battery.
Control system: Including charge controller and power generation system control, responsible for managing the charging and discharging process of the battery and protecting the battery from overcharging or overdischarging.
Light source: Using 4*150W LED light source, it has the characteristics of high efficiency, energy saving and long life.
Lifting mast: The material is usually made of high-strength and high-quality steel to ensure the stability and durability of the lighthouse. The height of the light pole can reach 9 meters, and the lifting method (such as hand crank or electric) is designed according to specific needs.
Trailer and Stand: The lighthouse is designed with a trailer and stand for easy movement and transportation. Trailers are usually equipped with car tires to ensure stability and convenience when moving.
YGNE YST-9000LL Light Tower application range
The application range of lighthouses is very wide, mainly including the following scenarios:
1. Construction site: The lighthouse can provide sufficient light for the construction area to ensure safe and smooth construction.
2. Mine: The use of lighthouses in mines can provide necessary lighting and is suitable for various mining operations.
3. Airport: In large transportation hubs such as airports, lighthouses can provide high-brightness lighting during night operation and provide safety management.
4. Square: In public places such as squares, lighthouses can provide large-area lighting to meet the needs of public activities.
5. Enterprises and institutions such as the military, highways, railways, electric power, and public security: These units require large-area, high-brightness lighting when performing tasks. Lighthouses can provide stable lighting support.
6. Maintenance, accident handling, rescue and disaster relief work sites: In these emergency situations, lighthouses can be quickly deployed to provide necessary lighting support.
