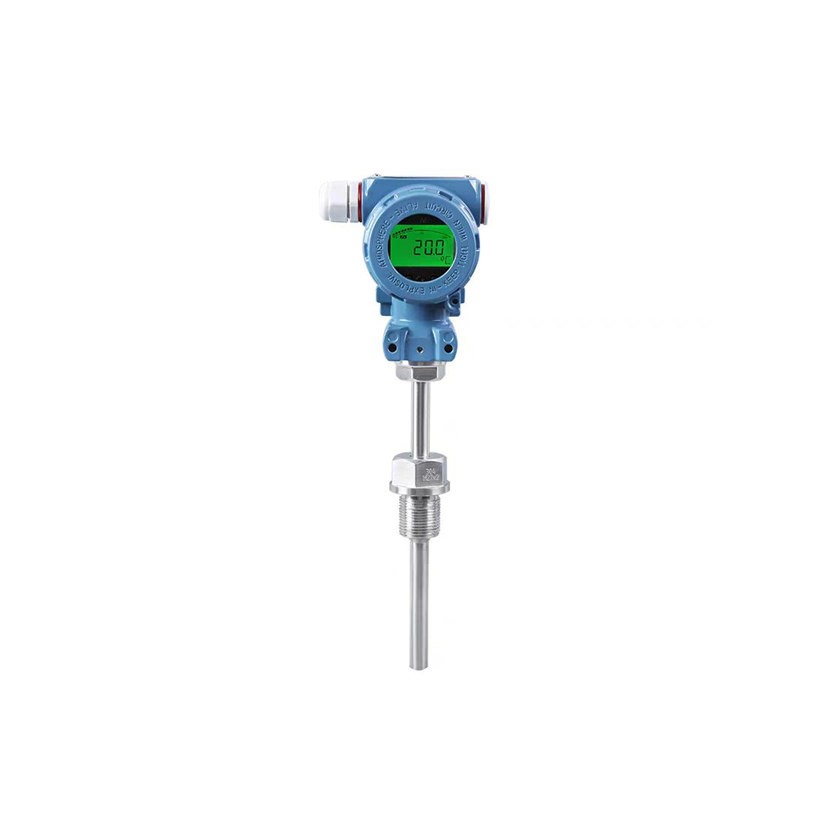

Temperature transmitter adopts thermonuclear, RTD as temperature measuring element, the output signal from the measuring element to the transmitter module, after the regulator filter, operational amplifier, nonlinear correction, V / I conversion, constant current and reverse protection After the circuit is processed, it is converted into a constant current signal output of 4-20mADC or 0-10mADC, which has a linear relationship with temperature.
Advantage
Long transmission distance, strong anti-interference ability. Cold end, temperature drift, non-linearity automatic compensation.
High measurement accuracy and good long-term stability.
The temperature module adopts epoxy resin casting process inside, which is suitable for use in various harsh and dangerous places.
Integrated design, simple and reasonable structure, can directly replace the ordinary assembly thermocouple, RTD.
Specifications
Parameter | Description |
Standard range | (k)0~1200?,(E)0~800??(S)0~1600??(B)0~1800? |
Output | 4~20mA, 0~5V, 0~10V |
Protocol | RS232, RS485, HART |
Accuracy | ±0.25%?±0.5% |
Application | Liquid,gas,steam |
Protection pipe material | 1Cr18Ni9Ti,ceramics,steel tube |
Installation | M12*15,M20*15,M27*2,or other type you need |
Load | 0~500? |
Voltage | 10~45V |
Explosion proof | DIIBT6 |
Protection | IP65,IP67 |
Display | Without display/LED/LCD |
Temperature transmitter can converts the temperature signal detected by a temperature sensor into a standard electrical signal (such as 4-20mA, 0-10V), and it is widely used in industrial automation and process control.
