The AWWA C207 A105 carbon steel flange represents a synergistic blend of durability, reliability, and adaptability, making it an essential component for various industrial and municipal water systems. Designed in accordance with the American Water Works Association (AWWA) standards, this flange is engineered to meet the rigorous demands of piping systems in a range of applications, including water treatment plants, wastewater facilities, and other industrial operations.
Specifications and Compliance
Manufactured from high-quality A105 carbon steel, the AWWA C207 flange adheres to stringent quality control standards, ensuring consistent performance and longevity. The A105 specification corresponds to the American Society for Testing and Materials (ASTM) guidelines pertaining to carbon steel for piping components. It includes characteristics such as a minimum yield strength of 36,000 psi and a minimum tensile strength of 58,000 psi, ensuring that the flange can withstand high-pressure environments without compromising structural integrity.
An important aspect of this Carbon Steel Flange is its compliance with the AWWA C207 standard, which specifies the design, material, testing, and fabrication requirements for steel flanges used in municipal waterworks. The AWWA standard ensures that these flanges have the necessary mechanical properties and compatibility with other components in water distribution systems.
Design Features

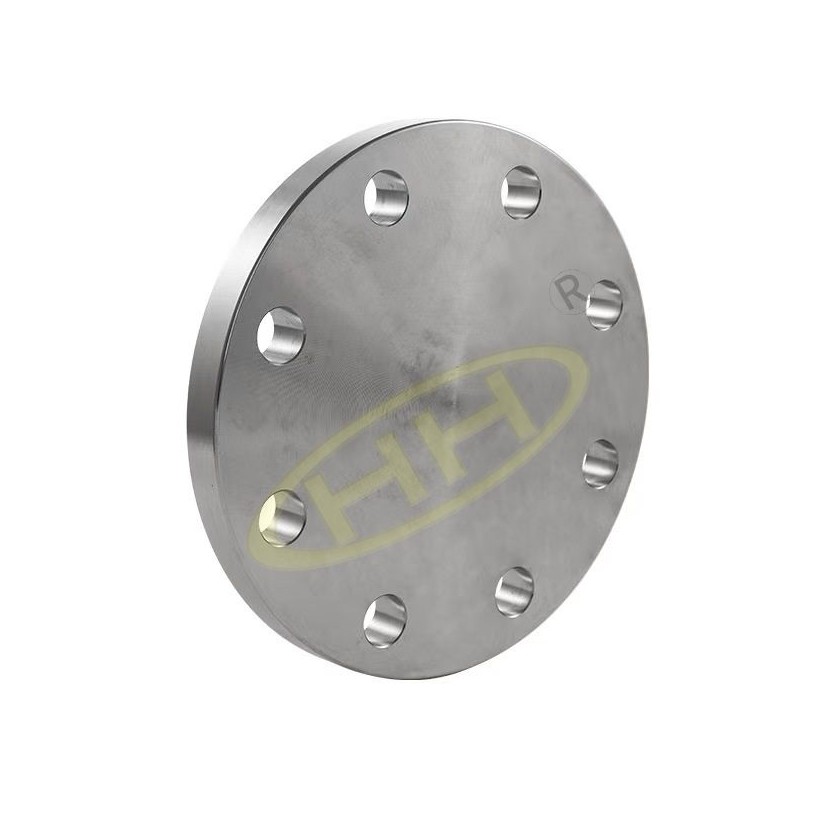

The AWWA C207 A105 flange features a flat face design, optimized for leak-free performance. It typically comes with drilled holes around its perimeter for easy bolting and secure connections, thus facilitating efficient installation and maintenance. The flange's design typically includes flat, raised, or beveled faces, which allow for compatibility with various piping systems and connection configurations.
The dimensions of the flange are standardized, ensuring its interoperability with AWWA Standards as well as ANSI/ASME (American National Standards Institute/American Society of Mechanical Engineers) standards for flanged connections. This interoperability is crucial for maintenance and replacement in existing systems, helping to minimize downtime and operational disruptions.
