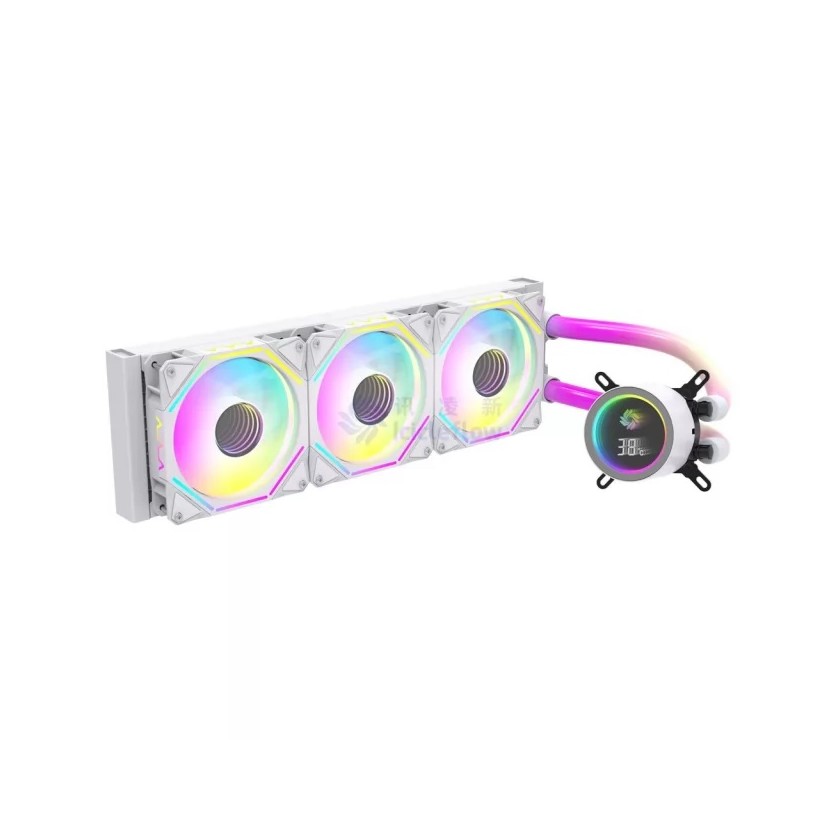

TD-IL-R360 Liquid Cooler
Product Description
1. With CPU temperature display (Really core temperature)
2. 18 kinds of magic light effect changes (Appearance light effect cool)
3. Three-phase non-inductive motor (quiet, low-torque starting)
4. Ceramic shaft core (strong wear-resistant, cooling pump long running guarantee)
5. PPS water parts (high temperature resistance, less deformation, not easy to produce water leakage)
6. High and low temperature resistant sealing material (ensure no leakage)
7. Low noise (quiet product operation, no noise to disturb consumers)
8. Separate blade patented design (unique design for water cooling industry)
9. Product overall low evaporation rate (product liquid life assurance)
10. High and low temperature rubber pipe (product liquid life guarantee)
11. Patented runner - low flow resistance design (water cooling industry unique design, the first use of rubberless shunt design)
12. High ratio of filling space (high filling rate, product life guarantee)
13. Low thermal resistance heat dissipation performance guarantee (reflecting the overall thermal performance of the product)
14. Intel, AMD universal installation backplane bracket installation (easy for consumers to replace the platform)
15. High thermal conductivity pure copper contact CPU (ensure fast heat transfer speed)
Items | Specifications/Conditions |
Product model number | Icicleflow 360 liquid cooler |
Coldplate head size | W70 * L70* H54mm |
Coldplate head size | W22.4 X L15.8X H8.5mm |
120 radiator | W396 X 120 X27mm |
Hose Specifications | Black rubber pipe *2, coat black braided mesh,L350mm |
Hose cover | Aluminum alloy, oxidized black sleeve, ∅12.4*∅13.2*12.3mm |
Top cover specifications | 70 x 70 x 41.1mm, made of PC, sprayed black paint onthe surface |
Skive base spec | L62*W53*H3.8mm, material copper |
Impeller poles | 10 Poles / 10 Poles |
Stator slots | 12 slots / 12 slots |
Pump rated voltage | DC 12V |
