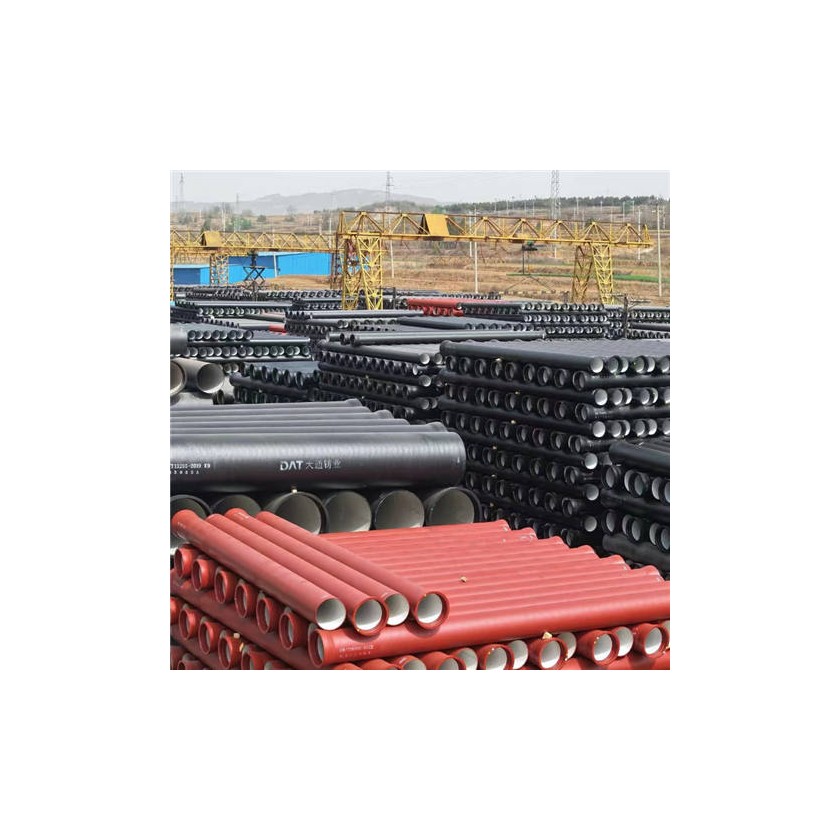

The T-type Joint Pipes (Push-on) produced by our company range from DN80mm to DN2600mm are flexibly jointed with sockets and spigots; they are the first choice in urban water pipe networks due to their convenient installation, strong seismic performances, seal ability and corrosion resistance.
Type: | The T-type Joint Pipe (Push-on) |
Standard: | ISO2531, EN545, EN598, etc |
DN: | DN80mm~DN2600mm |
Material: | Ductile Cast Iron |
Pressure: | PN10, PN16, PN25,PN40 |
Wall Thickness: | K9, K8, C25, C30, C40 |
Length: | 6m, cut to 5.7m |
Application: | Water supply project, drainage, sewage, irrigation, water pipeline. |
Internal Coating: | a). Portland cement mortar lining |
b). Sulphate Resistant cement mortar lining | |
c). High-Aluminum cement mortar lining | |
d). Fusion bonded epoxy coating | |
e). Liquid epoxy painting | |
f). Black bitumen painting | |
External Coating: | a). zinc+bitumen(70microns) painting |
b). Fusion bonded epoxy coating | |
c). Zinc-aluminum alloy +liquid epoxy painting |
For more about Ductile Iron Pipes, please contact us.
