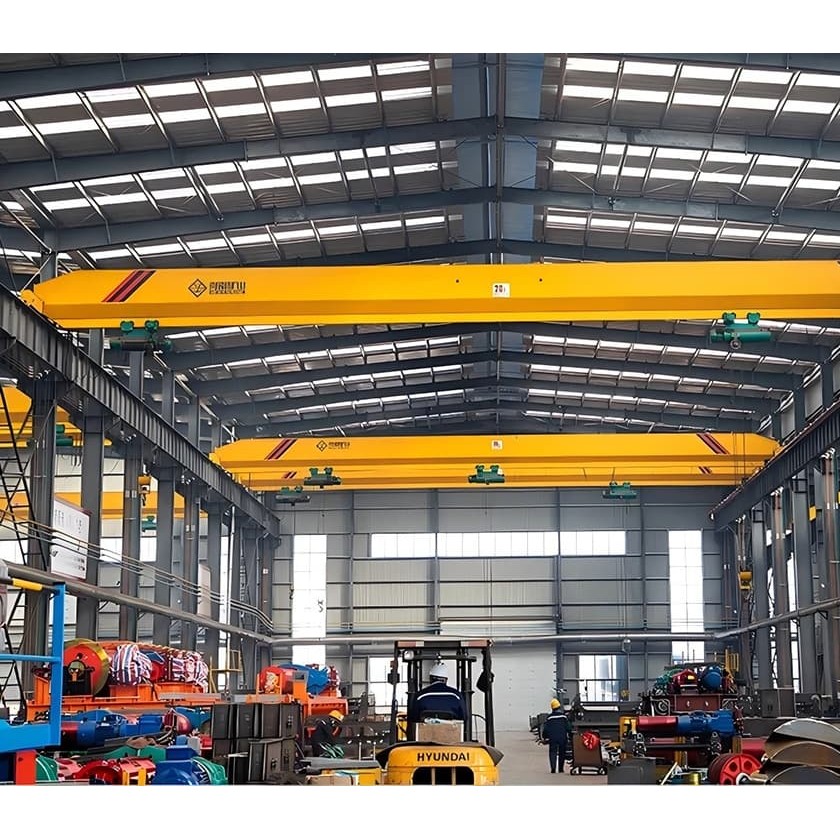

The crane girder is made from high quality I-beam steel and a precision-formed U-shaped channel. The end girders are welded from rectangular steel tubes or high-grade steel.With its compact, well-designed structure and high-quality steel construction, the crane guarantees smooth operation, efficient braking, and a long service life.
Customizable for specialized applications, Henan Mine Crane provide tailored solutions to meet specific needs.
Features
Single girder with top running configuration makes it suitable for a variety of industrial environments
High-quality I-beam steel serving as the running track for the electric hoist enhances its durability and smooth operation
Hoist: CD or MD with wire rope or electric chain hoist
The hoist and main beam mechanisms can be controlled either independently or synchronously: improves efficiency and safety in handling complex loads
Cable available in open or closed styles, with installation on either the left or right side:enhances the crane's adaptability to different workspace configurations
Operation modes: Pendant control or remote control
Tecnical Specifications
Lifting capacity | Up to 32 tons |
Lifting height | Tailored |
Span | ≤31.5m or tailored |
Rated voltage: | 220V/380V/400V/415V/660V, 50-60Hz, 3ph AC |
Working class | A3.A4 |
Temperature | Standard temperature: -20°C … +40°C. |
Protection | IP44/IP54 |
Crane type | Single girder, top-running |
Girder design | high-quality I-steel and U-shaped groove |
Rope | steel wire rope default ,chain option |
Hoisting motor | Lifting: single-speed or double speedTravelling: single-speed |
Paint | One coat of primer and two coats of topcoat, total thickness exceeding 105µm |
