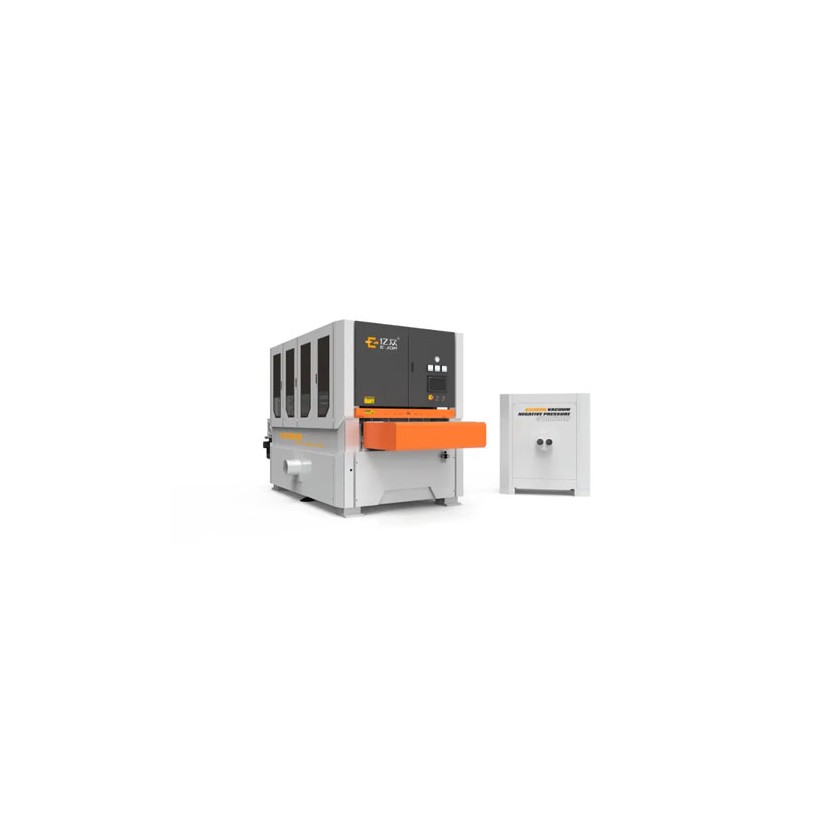

1. EJON Sanding-Deburring Machine Application: remove solid slag and burrs on the surface of workpiece; remove rust and oxide layer on the surface of the workpiece; Round the internal and external contours at the edge of metal sheet.
2. Scope of workpiece: metal sheet cut by laser, fire, CNC stamping and punched
3. Suitable material: stainless steel, iron, aluminum and copper. Remove oxide skin, polishing and brushing are available.
4. Metal sheet maximum width: 1000mm
5. Polishing or brushing
Technical Parameters
Item | Parameters |
Model | YZ1500G |
Dimensions/Package | 1850*3300*2100mm, 5500KG |
Material thickness | 0.2-80mm |
Material width | 1500mm |
Power supply | 380V/50Hz |
Maximum power | 34.5KW |
Compressed air | 0.6MPa |
In the advertising sign fabrication industry, most quality issues do not originate from design or cutting accuracy, but from insufficient edge treatment and surface finishing. A Sanding Deburring Machine is not simply an auxiliary device—it functions as a core quality control process between cutting, bending, welding, and final assembly.
