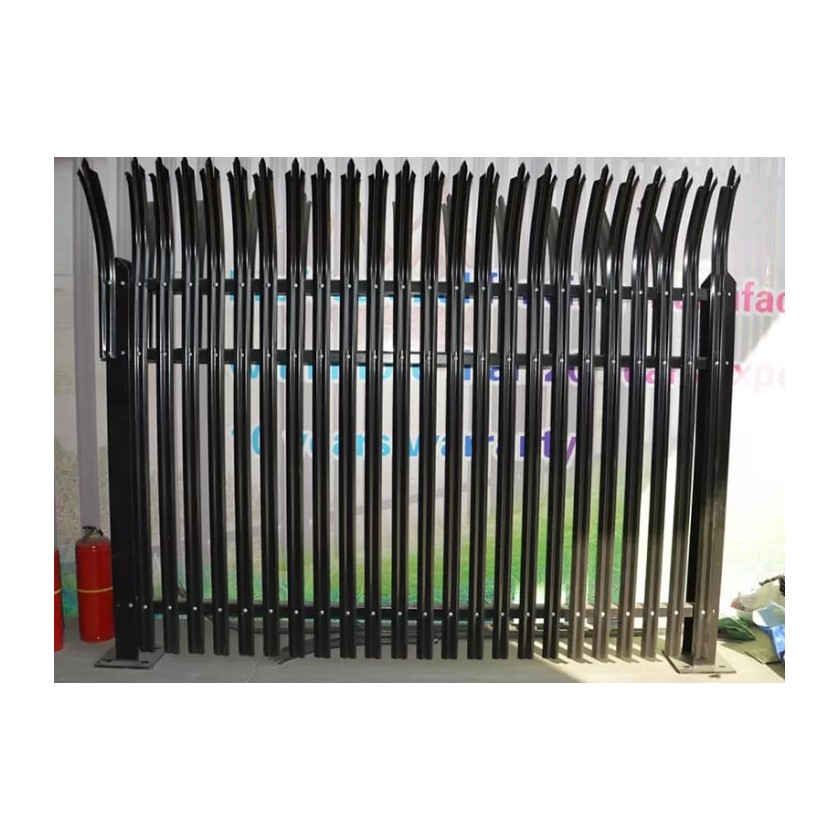

Palisade Fence
A:Height:1800 mm,2100 mm, 2400 mm, 3000 mm
B:Width: 2750 mm
C:Pale Type: W-profile, D-profile and angle steel
D:Pale Top: square top, triple pointed top, single pointed top, round top, round & notch top,etc.
E:Pale Thickness:1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm
F:Horizontal Rail: angle steel (40 mm x 40 mm x 4 mm, 50 mm x 50 mm x 5 mm, 50 mm x50 mm x6 mm)
G:Post: square post (60 mm x 60 mm, 80 mm x 80 mm, 100 x 100 mm); H post (100 x 55mm)
H:Connection:fish plate (40 mm x8 mm x 150 mm)
Technical Details & Options
Pales: Available in both “D” section and “W” section, with options of single-pointed, rounded, or rounded & notched tops.
Heights: From 1.8m up to 3.6m or custom specifications.
Rails & Fixings: Pales fixed to horizontal rails using M8 bolts and cone nuts, with optional anti-vandal rivets and collars.
Surface Finish: Hot-dip galvanized, powder-coated, or PVC coated.
Powder Coating: Using AkzoNobel certified powder with 120 microns thickness, applied by 32 Swiss ITW GEMA spray guns for a uniform, durable finish.
Edge Processing: All sharp edges polished to remove burrs for safety during installation and use.
