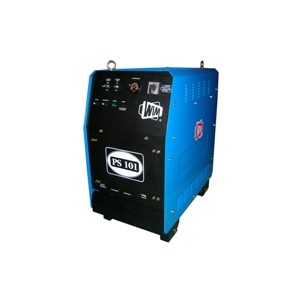

WIM PS 101 Plasma Cutting and Welding

You have not logged in yet, please log in to view contact information

Detailed Description

PS 101

* Input Voltage : 415V
* Input Current : 26A
* Welding Current : 40 ~ 100A
* Duty Cycle : 65%
* Weight : 156Kg
* Dimensions (mm) : 435X 732X 860

Specification

TECHNICAL CHARACTERISTICS		PS 101
Primary Supply	3 ph V	380 / 415V
Rated Input	A	26
Output Current (By Thyristor)	A	40 , 65 , 100 (3 steps)
Rated Load Voltage	V	145
Air Pressure	psig	60 - 70
Air Flow	Scfh	240
Plasma Gas		Air
Cooling Gas		Air
Weight (without input cable &plug)	Kg	145
Dimension (LxWxH)	mm	435X 732X 860
*Please note that the duty cycle value may varies according to room temperature.
