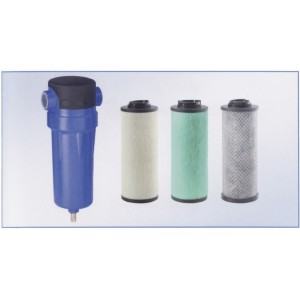

PF-HF-CF Coalescing & Activated Carbon filter
STANDARD REFERENCE CONDITIONS
- Capacity available from 20 cfm to 18,500 cfm
- Working pressure: 7 bar ( max. 12bar, 13bar & 16bar )
- Ambient temperature: 25 °C
- Inlet air temperature: 20 °C
- Max inlet air temperature 120 °C (60°C on CF activated carbon filer)
- ISO 8573-1
DESCRIPTION
PF-HF - interception type filters suitable for solid and oil particles up to 1 micron - 0.1 mg/m3(PF) and 0.01 micron - 0.01 mg/m3(HF). These filters, by means of the interception and coalecing principles, compel the submicronic liquid particles, which from the inside strain through the element, to collide the thus become larger micro droplets, which will drip the bottom of the filter housing.CF - There are treatments in industrial plants which in aditioin to oil free air, require the elimination of oil vapors and odors. For these purpose, the activated carbon filter through the adsorption process attracts all odors and vapors left afer desoling and keep them on the surface of the activated carbon grain molecules. Ywing this PF ir HF filters have to be placed before the CF filters. The element is made by thick activated carbo layer covered by fibre coating kept in place by an inside stainless steel wall.
