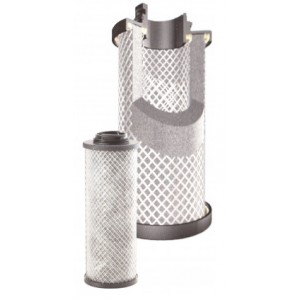

CF - ACTIVETED CARBON FILTER ELEMENT
There are treatments in industrial plants which in aditioin to oil free air, require the elimination of oil vapors and odors. For these purpose, the activated carbon filter through the adsorption process attracts all odors and vapors left afer desoling and keep them on the surface of the activated carbon grain molecules. Owing to this, PF or HF filters have to be placed before the CF filters. The element is made by thick activated carbo layer covered by fibre coating kept in place by an inside stainless steel wall.- Grade: 0.01 micorn ( 0.0003 mg/m3 )
- Max working temperature: 60C
- Pressure Drop ( Dry / Wet) : 0.08 bar / 0.12 bar
- CLASS 1 : ISO 8573-1
