AVAILABLE OPTIONS
- Connections: A-AV10-800 available with NPT connections.
- A-AV140-2100 available with ANSI connections.
- All models are available also without separator.
STANDARD REFERENCE CONDITIONS
- Working pressure: 7 bar
- Water side pressure: 3 bar (7 max)
- Ambient temperature: 1 °C min
- Inlet air temperature: 120 °C
- IN-OUT water temperature: 15 – 25 °C
DESCRIPT ION

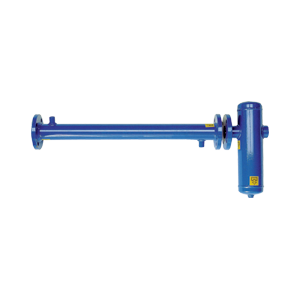

- The water aftercoolers are composed of two parts: high efficiency shell in tube air/water heat exchanger, offering little pressure drops to cool air, and cyclone condenser separator to separate and eliminate the condensed water. Useful for the most diverse needs and applications, they also offer, upon request, the possibility of vertical assembling (AV series).
