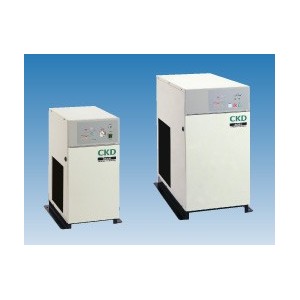

Ecological compact dryer GX3100 | GX5100 Series
New refrigerant R-407C to prevent ozone destruction is used in CKD refrigerating type dryer GX3000/5000 Series. Introducitn the all new GX Series!
- Stainless steel heat exchanger compatible with oil free compressed air
- Outstanding corrosion resisitance
GX3108 | GX5103 to 5108
The stainless steel plate heat exchanger provides outstanding corrosion-resistant, preventing refrigerant leaks and rust formation.
GX3111 to 3137 | GX5111 to 5137
A stainless steel vessel is used, and refrigerant piping is configured from spiral fin tubing free of brazed sections. - All models compatible with high pressure
Standard specifications, max. working pressure 1.6MPa, are provided for all models.
- Outstanding corrosion resisitance
- Ensuring reliability with forced drain
- Eliminating problems during drainage
Drainage is forcibly ejected by the dryer’s air pressure, leaving pipes unclogged. Reliability is greatly improved using a direct-acting solenoid valve. - Air loss prevention
GX3111 to 3137 | GX5111 to 5137
Drainage discharge time is controlled based on inlet air temperature. Air loss is prevented. Solenoid valve operating frequently drops with inlet air temperature, extending solenoid volve life.
- Eliminating problems during drainage
- Highly efficient daily inspections
- Operational status of the dryer is easily checked by the electronic dew point monitor in the operation panel.
- Central control in the plant is possible. (Option)
Centralized control is realized at the factory using remote operation and by reading out run/error signal output.(*GX3108 and GX5103 to 5108 allow output of running signal only.) - Dust filter equipped
Dust filter for the capacitor is provided as standard. Mounting or removing the filter is also easy. - Easy to remove front panel (tool not required)
- This is available for various power voltage (option)
The built-in transformer eliminates the need for a standalone or external transformer, free extra space.
