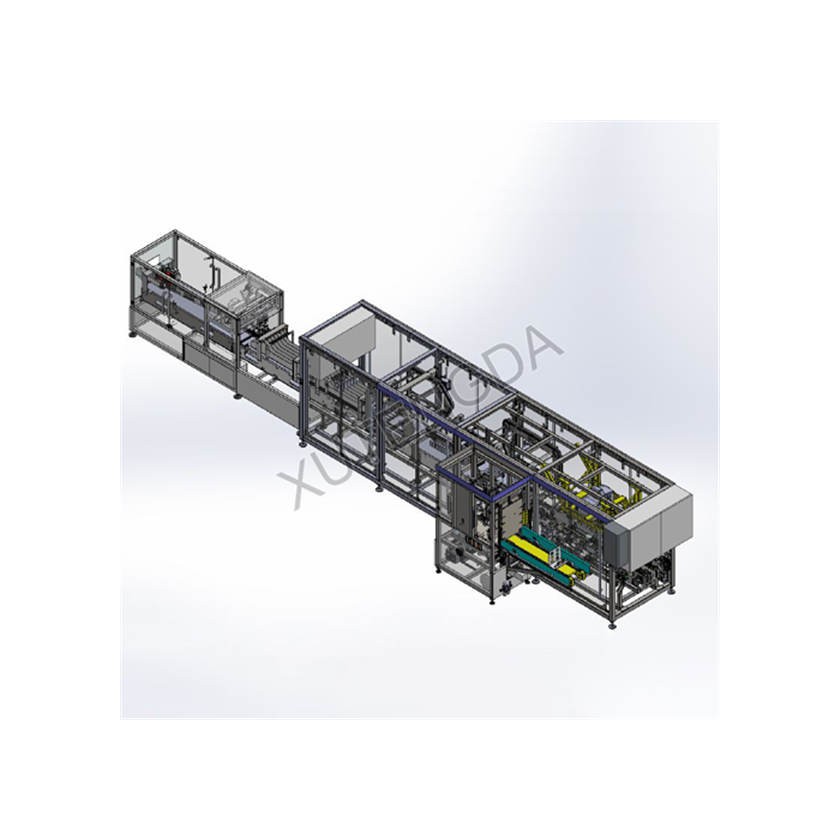

1. Cardboard box Packing Machine combines conveyor、separation、packing 、sealing into one step. The packaging speed is fast, the packaged carton appearance is square, beautiful, and the bonding is firm.
2. System parameter input, servo synchronous control parameter download, alarm display and command transmission and other functions.The function is clear and intuitive, easy to operate.
3. The whole design is compact and the layout of each station is reasonable, the overall use of high strength material manufacturing, safety, durable, reasonable structure, stable performance, reliable quality, with high cost performance ratio, suitable for tetra-pack’s gifting package.It has the photoelectrical detecting system, automatic counting system, automatic checkout system. when there is something wrong, the machine stop working and alarm.This type packing equipment is widely used in dairy, food, beverage industries.
Main Technical Specification
Type | XTD-GB35 |
The type of the box | The carton in one piece |
The range of the box | L230-500mm*W150-350mm*H90-300mm |
Packing speed | 35 boxes/min, varies according to the packing method and carton |
Packing Specification | 24bags/box, 3*8combination(can be customized) |
Voltage | 380V、50HZ |
Power | 25KW |
Sealing method | Hot melt glue |
Air pressure/Air consumption | 6kg.f/cm 500nl/min |
The height of Conveyor line butt connector | 800±50mm |
The type of the package | Full package, half package |
