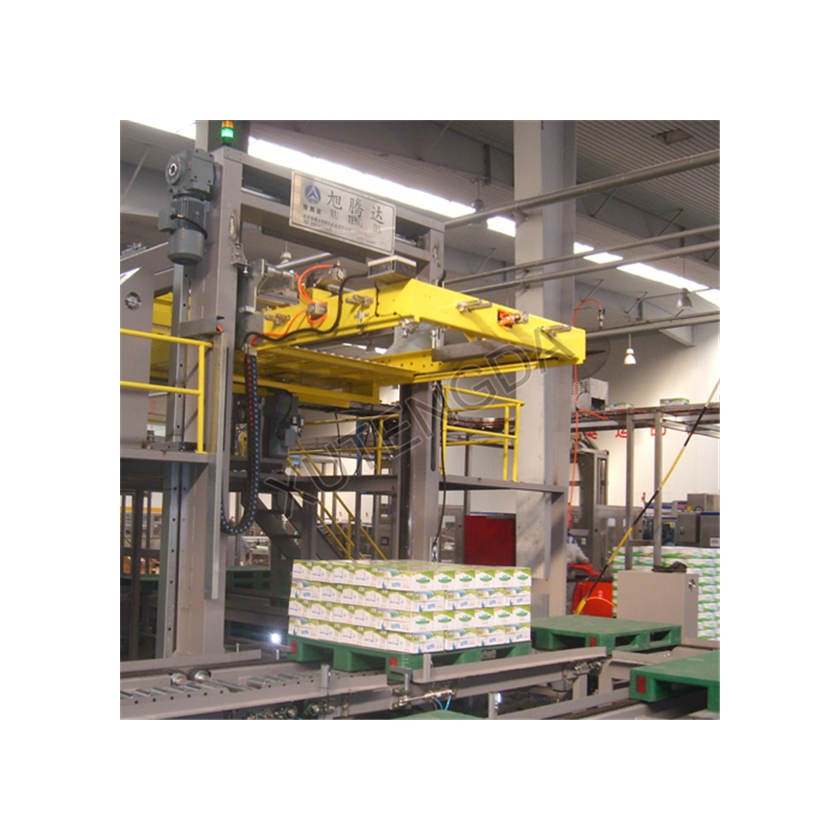

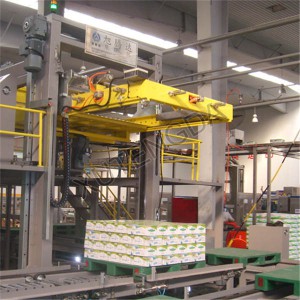

Lower-bed automatic palletizer put the cartons on the pallet in order, automatic palletizing, can pallet several layers, then will push the pallet out, easily for the forklift transport to warehouse for storage. It adopts separate stripping plate, the parts of the equipment: carton put in, collating unit, lifting and pallet device, pallet stacking, automatic supply device and the full pallet evacuator device.
Mechanical palletizer adopts PLC and touch screen control, to realize the intelligent operation and management. When the door open, the equipment stop work, then it can protect the safety of the workers. The adjustment of stacking way is simple and easy.
Main Technical Specification
Type | XMD-ZS35 |
Rated loading | 150kg |
Recyle time | 300times/hour |
The height of the pallet | up to 1700mm |
The size of the pallet | 1200mm*1200mm |
The height of the pallet | Up to 2m |
The box quantity of each layer | The largest L#W:1200*1200mm |
Grasp type | Self-closing sucker |
The size of the carton(L*W*H) | Support 1200*1200*1700mm |
Repeated positioning accuracy | ±5mm |
Voltage | 380V、50HZ |
Air pressure/Air consumption | 6kg.f/cm 300nl/min |
Power | 12kw |
Size | L6500*W5000*H3250 |
Weight | 3500kg |
