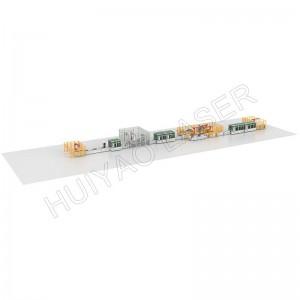

Cylindrical lithium battery production line
Product Description
Device Introduction: The process process from the battery warming tunnel furnace completes from the scroll around the Lithium Battery Production Line to the preheating baking section. The battery cells are heated on the conveying line of the constant temperature stove, and the heating pipe is used to generate heat in the heating pipe. The fan is used to stir. Essence
Equipment advantage:
1. Simple design and energy saving;
2. Covering the area is small;
3. Compatible with replacement.
Hot Press
Device profile: Thermal compressor is used to plasticine the battery after the winding, mainly including heat pressure and Hi-POT testing; the device can make the heat pressure duration, thermal pressure temperature, thermal pressure pressure, Hi-POT test duration, testing test duration, testing As a result, the information such as the scanning barcode corresponds to one -to -one code, and the corresponding information is stored to the industrial PC and uploaded to the MES system.
Equipment advantage:
1. The battery connection process does not hurt the battery cell;
2. The hot pressure plate is pressed naked batteries, which is evenly heated;
3. Thermal pressure temperature detection;
4. Hi-POT test.
Connect the ultrasonic welding machine
Introduction to the device: The connecting film ultrasonic welding machine is used for the battery polar ear and connecting ultrasonic welding equipment of the battery cell in the assembly section of the square lithium ion battery. This device mainly completes the positioning, detection, and fixture of the battery, connecting films, protective pieces, etc.;
Equipment advantage:
1. The battery connection process does not hurt the battery cell;
2. During the welding process, the battery protection is well protected;
3. Compatible with non -stop driving and tape and stop tape;
4. Welding machine dysfunction detection.
Transfer laser welding machine
Device Introduction: The laser welding machine for the battery top cover and connecting the ultrasonic welding equipment of the cells in the assembly section. This device mainly completes the cells and codes, scan code, the top cover, single -code, code scanning, rotating slices and top cover laser welding, welding and dust removal, welding printing detection, welding printing and sticker, stickers detection, lowering, lowering, lowering, lowering Materials and other functions.
