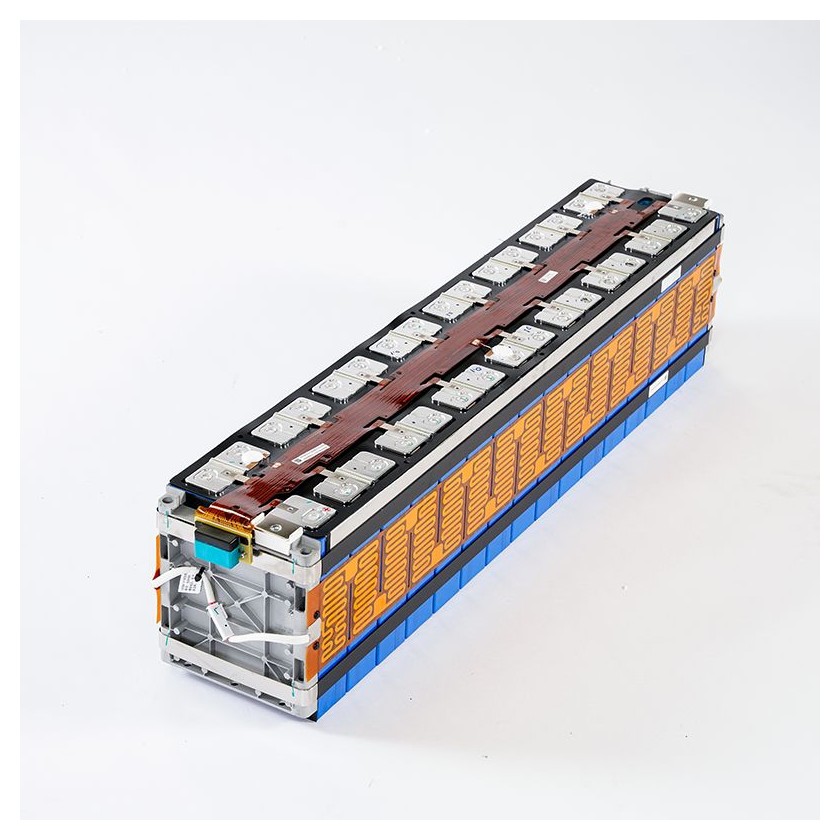

The LGNE battery module can be flexibly adapted to various mainstream cell brands, meeting different performance and cost requirements. The module adopts a high-energy density design and supports flexible parallel and series configurations, enabling customized electrification solutions for multiple scenarios.
Parameters
Module | Voltage(V) | Capacity(Ah) | Cell Brand | Power(kWh) | Dimensions (mm) |
1P10S | 32 | 105 | EVE | 3.36 | 411*136*206mm |
1P4S | 12.8 | 304 | EVE | 3.89 | 330*179*218mm |
1P8S | 25.6 | 173 | EVE | 4.43 | 375*181*220mm |
1P12S | 38.4 | 173 | EVE | 6.64 | 542*180*217mm |
1P12S | 38.4 | 230 | EVE | 8.83 | 694*181*217mm |
1P10S | 32 | 304 | EVE | 9.73 | 763*179*218mm |
1P14S | 44.8 | 230 | EVE | 10.3 | 803*179*210mm |
1P12S | 38.4 | 304 | EVE | 11.67 | 907*180*207mm |
1P16S | 51.2 | 230 | EVE | 11.78 | 907*180*207mm |
Battery Modules
EV battery modules with high energy density and stable output
Modular lithium battery system for flexible pack integration
Supports high-voltage EV battery module configurations
Automotive-grade module design with strong vibration resistance
High safety lithium modules with thermal and electric protection
CAN & RS485/RS232 supported for smart battery communication
Balanced performance across cells for long module cycle life
Custom EV module solutions for trucks, buses, and machinery
