1. Casting base
2. Maximum stroke of Y-axis up to 210mm
3. Maximum machining length reach to 280mm
Features

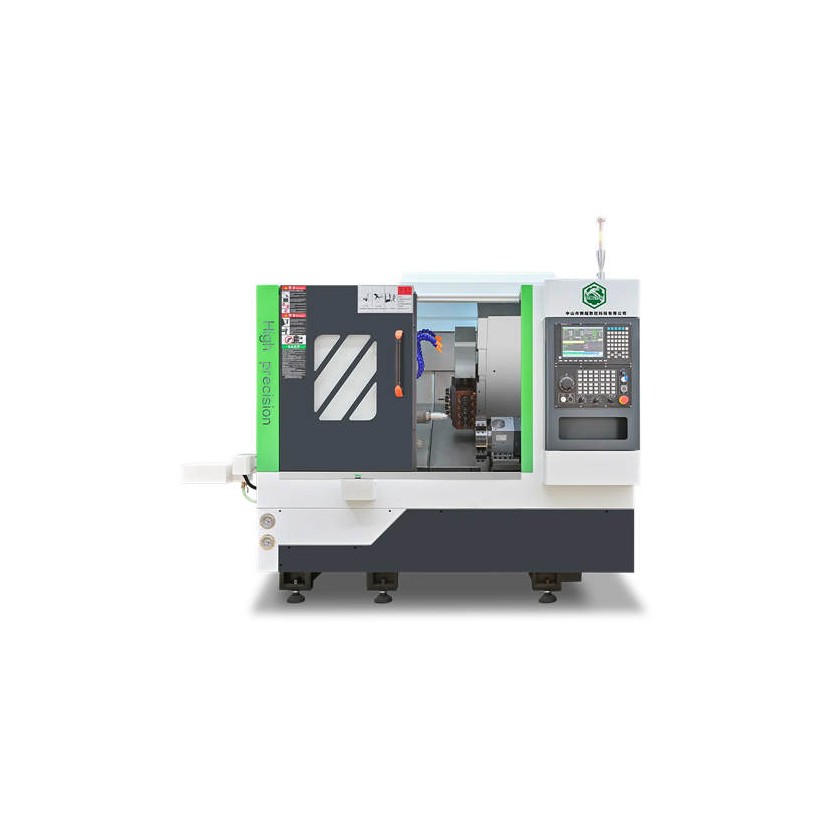

a. The CK46B Y4+4 CNC lathe machine features an HT300 one-piece casting base, ensuring durability with secondary tempering for small and medium parts.
b. CNC lathe machine adopts an extended flange slider with Taiwan PMI P-grade roller guides and HIWIN high-rigidity C3-grade screws.
c. Equipped with a Taiwan POSA A2-5 high-precision spindle, this CNC lathe offers dual encoder for the main motor and spindle, and CNC lathe machine utilizing M3 communication for enhanced precision and performance.
Application
CNC lathe machine, CK46B Y4+4, can process steel, bronze, stainless steel, hard plastics, and more, handling bar materials up to φ45mm and workpieces rotation diameter up to φ420mm. Equipped with a 4*4 live tool on the Y-axis and 8-station servo turret, this CNC lathe is ideal for machining molds, eccentric shafts, cams, crankshafts, and complex polyhedron parts with precision.
Our CNC Turning and Milling Machine—also known as a mill-turn machine - is a multi-task CNC machine that combines lathe turning and milling operations in a single setup. This allows manufacturers to perform both rotational and milling processes on the same workpiece without moving it between separate machines, reducing setup time and increasing accuracy.
