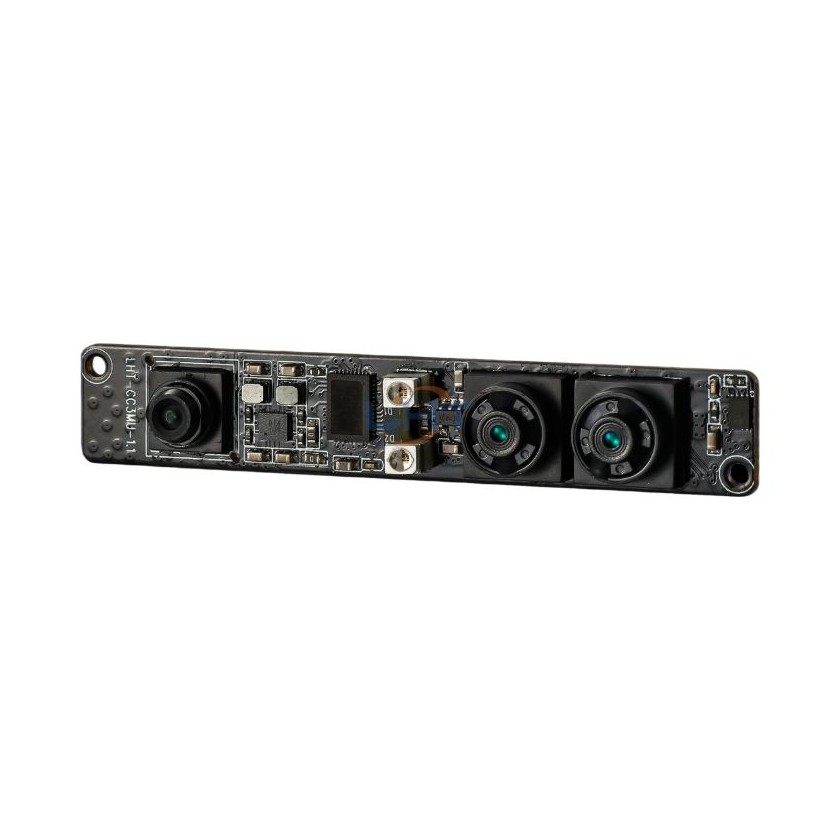

The LHT-CC3MU trinocular camera module features dual 3MP + 2MP sensors, supports automatic infrared fill light, autofocus, automatic gain control/white balance, liveness detection, and facial recognition with software. Power consumption is as low as 1W, and it supports Windows, Android, and Linux systems. It's plug-and-play, requiring no drivers, for convenient and fast operation.
This product features dual 1/3" CMOS + 1/5" CMOS sensors, supports MJPG/YUY2 formats, and has a standard size of 70*12*7mm. Customizable lens angles and dimensions are available, and the normal light facial recognition range is 30-120cm. A 3-meter, 5-pin, 1.25mm USB 2.0 cable is included. It is suitable for a variety of scenarios, including security surveillance, industrial inspection, and smart devices, providing clear and stable images for visual applications.
Dual Lens Camera Modules Technical Parameters:
Pixel size | 2.2um*2.2um | 2.2um*2.2um | |
Video output | MJPG/YUY2 | MJPG/YUY2 | MJPG/YUY2 |
Maximum Frame Rates (MJPG Resolution and Frame Rate） | Black and White 2048*1536 | Color 2048*1536 | 1600*1200 |
Maximum Frame Rates (YUY2 Resolution and Frame Rate） | Black and White 2048*1536 | Color 2048*1536 | 1600*1200 |
Dynamic range | 69.5dB | 69.5dB | |
Min.Illumination | 1LUTX | 1LUTX | 1LUTX |
Digital interface | 5-pin 1.25mm USB2.0 | 5-pin 1.25mm USB2.0 | MIPI |
Power requirements | 5V+-0.5 | 5V+-0.5 | 5V+-0.5 |
Power Consumption | 1W | 1W | 1W |
