Product Description
In order to meet the various needs of customers, we specially launch the customized service of non-standard size.
The length and specification of pin gauge can be processed according to requirements.
A customized pin gauge packaging box will be provided for orders under 20pcs.

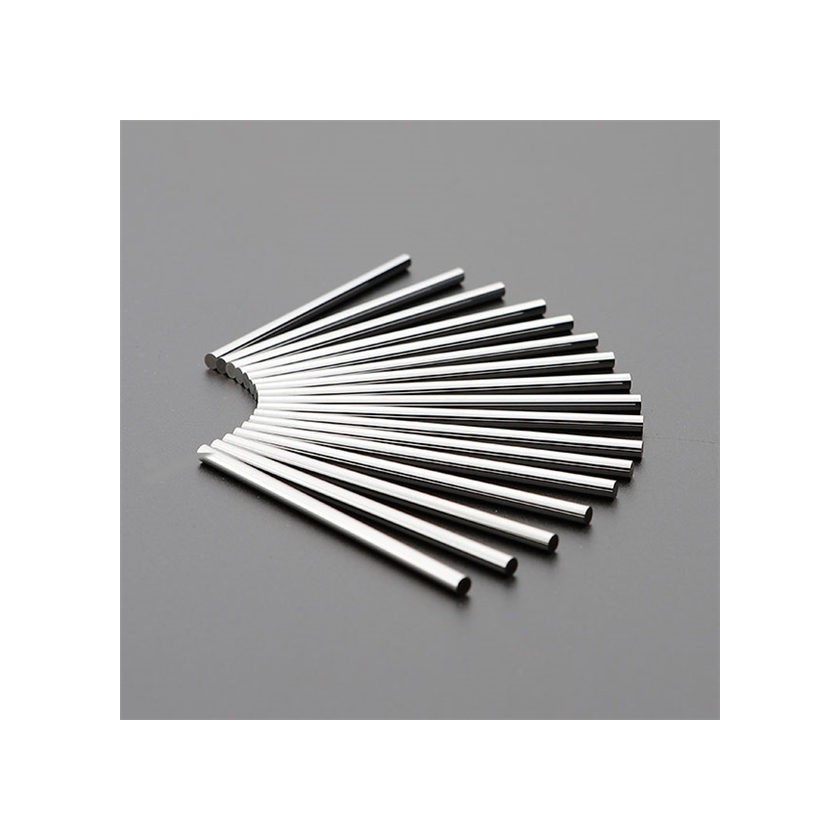

Characteristics of Steel Pin Gauge:
No rust
Wear resistance
hardness
(HV800-1200 or above)
Steel pin gauge properties: no rust, non-magnetic, corrosion-resistant.
Through multiple heat treatment process improvements, the hardness reaches above HV800-1200.
After ultra-cold treatment at -198℃, the dimensions are very stable.
Specifications | ||||
Level-K | ||||
Size (mm) | Tolerance (μm) | Roundness (μm) | Length (mm) | Hardness |
0.500，0.51……12.99 | ±0.5μm | 0.5μm | 50 | HRC: 58~62 |
13.00，13.01…20.99 | ±0.5μm | 0.6μm | 50 | |
21.00，21.01……30.00 | ±0.5μm | 0.8μm | 50 | |
Level-0 | ||||
Size (mm) | Tolerance (μm) | Roundness (μm) | Length (mm) | Hardness |
0.50，0.50……12.99 | ±1μm | 0.5μm | 50 | HRC: 58~62 |
13.00，13.01…20.99 | ±1μm | 0.6μm | 50 | |
21.00，21.01……30.00 | ±1μm | 0.8μm | 50 | |
