Product Description

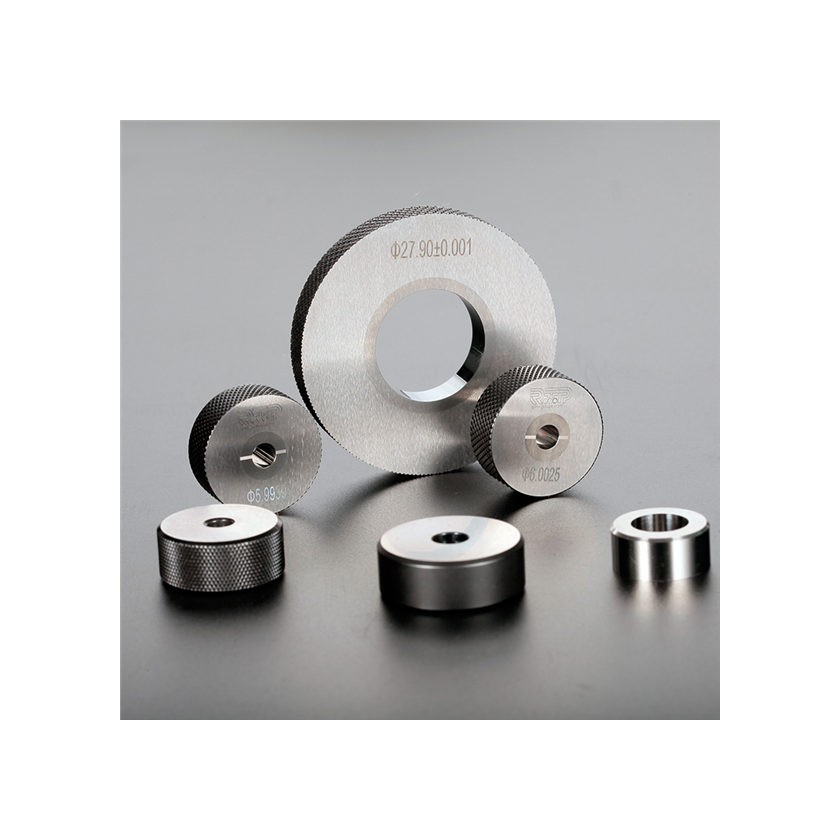

Tungsten Carbide Ring Gauge, also known as correction Tungsten Carbide ring gauge, is a ring made of Tungsten Carbide material with specific size and properties used to correct the shortcomings of measuring tools.
A Tungsten Carbide ring gauge is used to check external diameters on cylindrical objects, as well as calibrating other gauges or standards such as calipers, inside micrometers or bore gauges. Generally, they are cylindrical rings made of a stable material such as Tungsten Carbide, ceramic etc. with a precision finished interior surface and a known tolerance.
Specification
Φd(mm) | ΦD(mm) | t(mm) | 2-C |
Φ6.0 | Φ25 | 7 | 0.5 |
Φ8.0 | Φ25 | 10 | 0.5 |
Φ10.0 | Φ32 | 10 | 1 |
Φ12.0 | Φ32 | 10 | 1 |
Φ14.0 | Φ32 | 10 | 1 |
Φ16.0 | Φ35 | 10 | 1 |
Φ18.0 | Φ35 | 10 | 1.5 |
Φ20.0 | Φ45 | 10 | 1.5 |
Φ22.0 | Φ45 | 10 | 1.5 |
Φ24.0 | Φ45 | 10 | 1.5 |
Φ26.0 | Φ50 | 10 | 1.5 |
Notes
Ring gauges are used as auxiliary measurements in work pieces with complex shapes and positions to ensure the accuracy of measurement and processing, which is specifically reflected in the following aspects:
1. Improve product quality: By using high-precision smooth ring gauges for measurement, the size deviation of the workpiece can be prevented, quality problems of the product can be avoided, and the processing accuracy and consistency of the product can be ensured, thereby improving the overall quality of the product.
2. Improve production efficiency: Selecting smooth ring gauges with appropriate accuracy levels for rapid and batch comparison measurements can improve efficiency, reduce measurement errors, improve measurement efficiency, and avoid repeated processing and waste in production.
For more information or free quotation of the products or customization service, please visit www.pin-gauge.com
