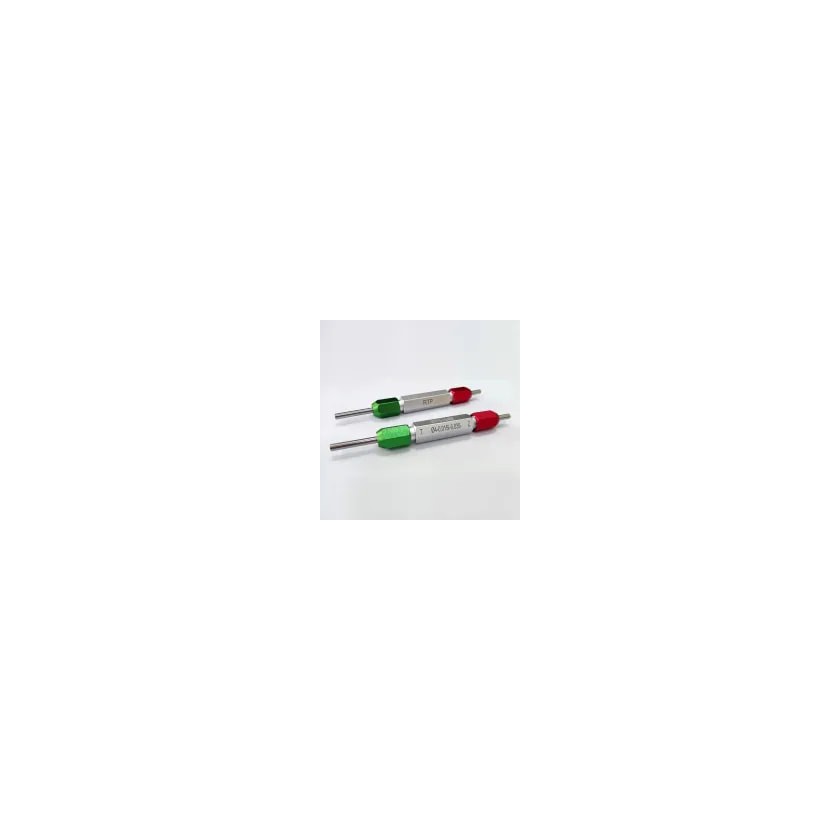

Double Sided GO/NO GO Plug Gauge is a precision plug gauge designed with both the GO and NO GO ends integrated on a single handle, allowing operators to quickly verify whether a hole diameter falls within specified tolerance limits. The GO end checks the minimum allowable dimension and should enter the hole smoothly, while the NO GO end verifies the upper tolerance limit and should not enter the hole if the part is correctly machined.
Testing Instrument:
1. Japan Tokyo Seimitsu Roundness Tester
2. Germany Mahr Roundness Tester
3. Mitutoyo laser Scan Micrometer
4. Switzerland Trimos Diameter Measuring Instrument
The temperature of Quality Inspection Center is controlled in approximately 20℃, which conforms to the international standard of professional laboratories.With rigorous inspection means, we carry out IQC Inspection System during feeding process as well as repeated self inspection through manufacturing procedure. The finished products
will be entirely inspected by our Quality Inspection Center.
Mechanical manufacturing
Use: Detect the aperture, shaft diameter and thread size of mechanical parts to ensure that the accuracy of parts meets the design requirements.
Advantage: Quickly determine whether the parts are qualified and improve production efficiency.
Electronic industry
Use: Used for dimensional detection of electronic components, such as jacks, pins, etc., to ensure the compatibility of component assembly.
Advantage: High-precision measurement to ensure the stability and reliability of electronic equipment.
Medical equipment
Use: Detect the dimensions of key components of medical devices, such as syringe needles, catheters, etc., to ensure compliance with medical standards.
Advantage: High precision and high reliability to ensure the safe use of medical equipment.
Precision instruments
Use: Used for component detection of precision instruments, such as optical instruments, measuring equipment, etc., to ensure the accuracy of the instruments.
Advantage: High-precision and high-stability measurement to ensure the performance of the instruments.
Aerospace
Use: Detect the dimensional accuracy of aerospace parts, such as engine parts, wing connectors, etc., to ensure compliance with strict quality standards.
Advantage: High precision and high reliability to ensure the safety and reliability of aerospace equipment.
RTP GAUGE has the Double Sided GO/NO GO Plug Gauge that meets your precision and reliability needs. With over 20 years of manufacturing experience and a senior technical team, we ensure high-quality standards through ISO 9001-2015 certification and rigorous in-process and laboratory-level inspections. Contact RTP GAUGE for the precision and quality you demand.
