Product Description
1. Dual spindles (Main/Sub - 52/46mm)
2. Maximum processing diameter*length up to 360*550mm
Features

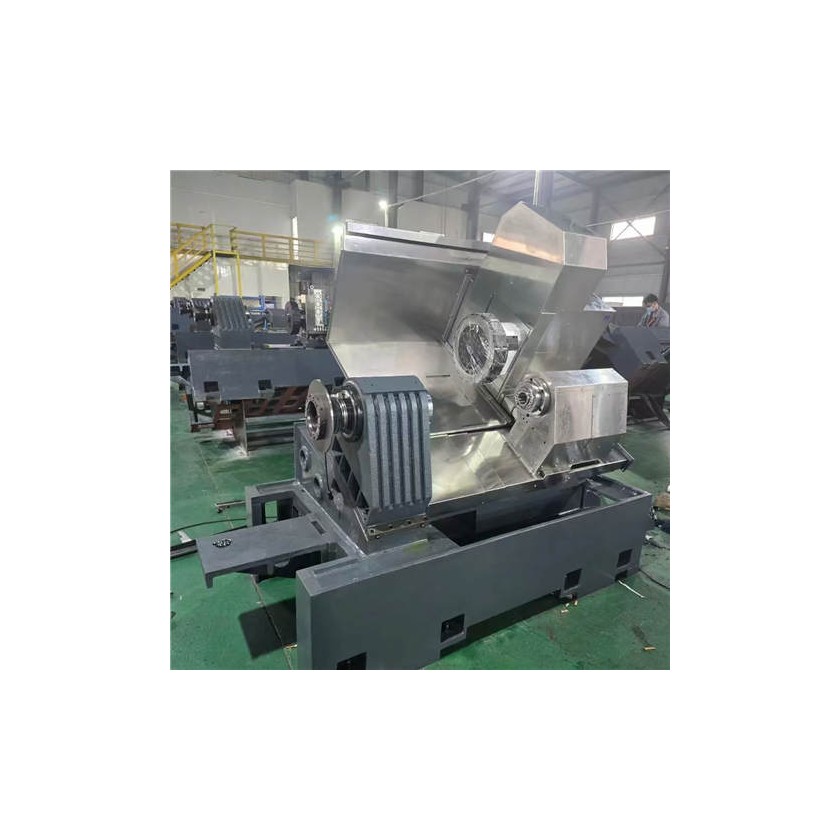

a. The Spindle CNC Lathe (bed base, bed frame and headstock) features a durable casting base, bed frame, and headstock crafted from high-strength materials, ensuring exceptional stability and the long-term and stable use of the machine tool.
b. Dual spindles adopt a high-precision rigid spindle unit, and a servo motor, the CNC lathe achieves superior speed and precision
c. The X/Z axis of feed adopts a servo motor directly connected to the lead screw through a large torque and low inertia elastic coupling to ensure positioning accuracy and repeatability.
Application
The dual spindles STDS56-46 CNC lathe excels in machining large-scale metal components. Capable of handling workpieces up to 360mm diameter × 550mm length with 500mm swing diameter, it integrates turning, milling, drilling, and multi-axis operations. The powered turret enables simultaneous front/rear spindle processing, efficiently completing complex geometries (threads, cross-holes, contoured surfaces) in single setup for high-precision alloy steel and titanium parts.
